Cube Test

Concrete Cube Testing to determine the strength of concrete can be done in both Destructive and Non-Destructive Methods of Testing. In Civil Engineering Jobs, Civil Engineering Construction Practice Cube test is one of the vital test which is performed to determine the strength of concrete which has been already used in the construction. Cube Testing is a Destructive Testing Method of Concrete Testing, as the cubes are crushed in Compression Testing Machine. The mostly tested cubes in practice are of 150x150x150 size in mm.

Apparatus

150x150x150 mm. cube moulds 6 Nos.

Slide wrench 1 No.

Trowel 1 No.

600mm long and 16mm Dia. Temping Rod 1No.

Nail 1 No.

Water Tank 1 No.

Steel Rule 1 No.

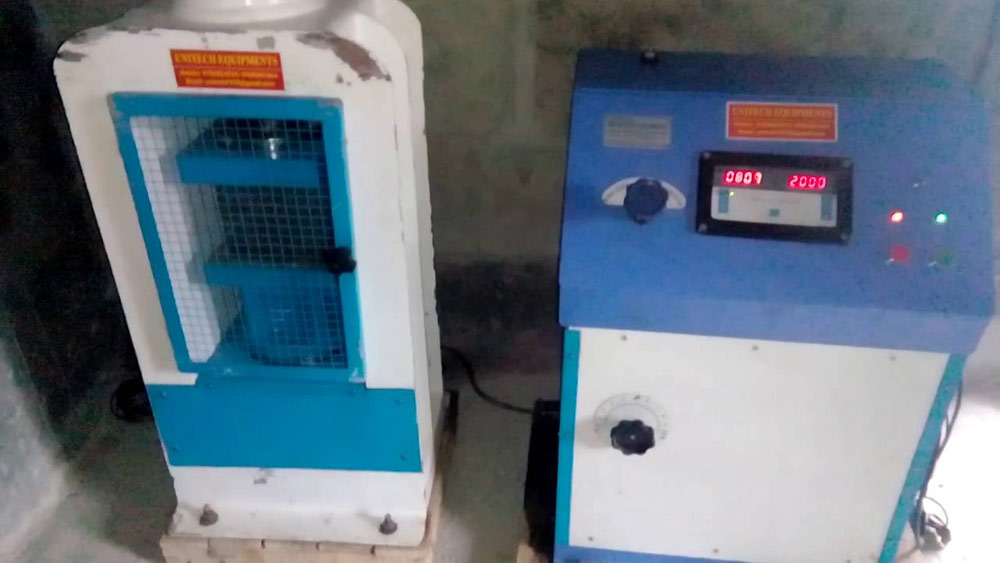

Compression Testing Machine

Soft Cloth 1 No.

Mallet 1 No.

Lubricating agent.
